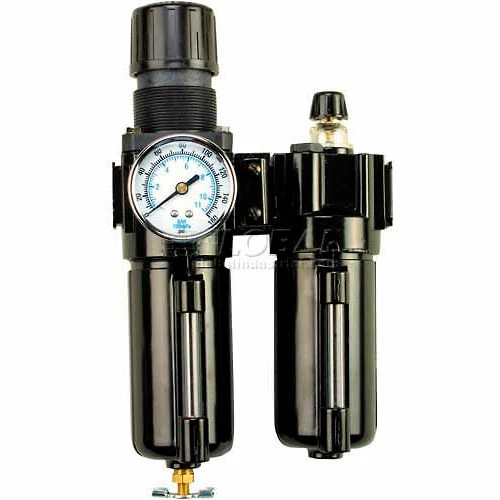

Arrow Pneumatics Arrow 3/4" Modular F/R & Lubricator W/End Ports C70356, Gauge, Poly Bowl, Manual

Arrow Pneumatics Modular FRL’s offer high performance and flexability in a compact, lightweight design. A screw driver is the only thing needed to connect or disconnect units. Insert interlocking feature allows simple installation in any location. Installation or removal from one plane without disturbing existing piping. Regulator mounting can be either up or down. Unique design allows side, top, indivdual and custom mounting. Regulator and lubricator adjustments are made through three position, tamper resistant knobs. Engineered to permit use with standard size pipe nipples. Special optional diverter blocks supply air to secondary locations. Unlimited adaptation to air preparation systems.

Features & Benefits

• 3/4″ Modular Filter/Regulator & Lubricator Duo combination with end ports that allow easy removal of all components
• Includes piggyback filter/regulator with manual drain for removal of particulate, dirt, debris, pipe scale, rust and water to 40 micron
• Air control regulator with gauge and Arrow Pneumatics Fog Lubricator
• Filter and lubricator have 5 oz. poly bowls with guards
• 150 PSI Max
• 5-125 PSI Operating Range
• 40°F-160°F Temp.
